HiBallast NF – Ballast Water Treatment System
Side stream electrolysis BWTS
24 hours holding time
The world's first BWTS adopting side stream electrolysis without filter
ALL PRODUCT
This system is the world’s first filterless side-stream electrolysis BWTS, providing a more economical, simple, and reliable solution regardless of turbidity.

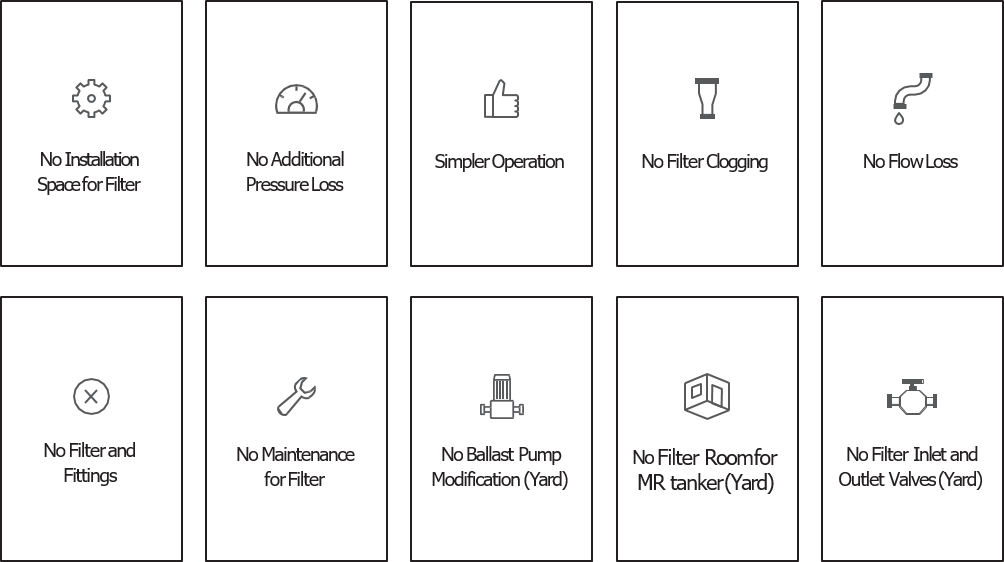

Feature
Optimization & Cost Savings

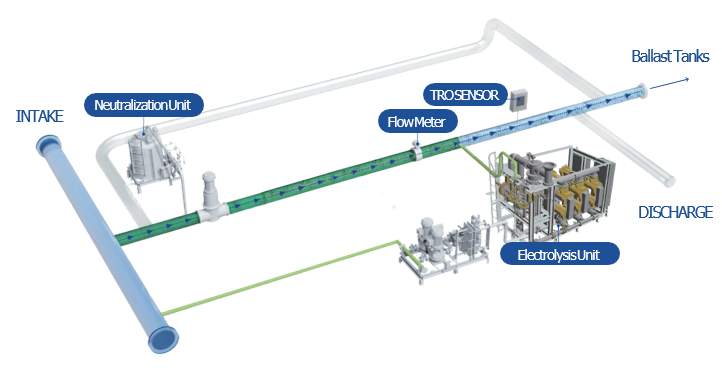

HiBallast NF Configuration
Representative Models: 75m³/h ~ 10,000m³/h
| Model | Capacity (m³/h) | EU Size LxWxH (mm) | EU Weight (kg) | Power Consumption (kW) (at 30 PSU) |
HiB-500 |
500 |
3000x2150x3100 |
3,000 |
25 |
HiB-1000 |
1,000 |
3000x2150x3100 |
3,500 |
50 |
HiB-2000 |
2,000 |
3000x2150x3100 |
3,800 |
100 |
HiB-4000 |
4,000 |
3200x2150x3150 |
4,900 |
200 |
HiB-6000 |
6,000 |
3500x2150x3150 |
5,700 |
300 |
HiB-8000 |
8,000 |
4550x2200x3200 |
6,600 |
400 |
HiB-10000 |
10,000 |
5300x2300x3500 |
8,950 |
500 |
* Power consumption may vary depending on water quality conditions.
Certificates
